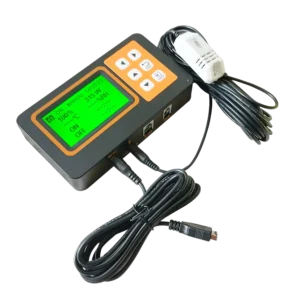

UPLUX Intelligent LED Controller: Precision Horticultural Control

The UPLUX Controller is the intelligent command hub designed to give growers complete, centralized control over their lighting environment. Developed specifically for UPLUX LED systems, including the UPLUX 240 UPLUX 720 and UPLUX 840 models, it enables precise management of photoperiods, dimming levels, and multi-zone configurations with unmatched accuracy and reliability.

With user-friendly programming and industrial-grade hardware, the UPLUX Controller allows seamless automation of day/night cycles, sunrise/sunset ramping, and adaptive intensity scheduling. Real-time monitoring of temperature, power output, and current flow ensures stable operation and consistent light delivery across all connected fixtures.

Perfect for commercial greenhouses, vertical farms, and research installations, the controller empowers operators to balance light intensity, timing, and energy consumption — maximizing yield and efficiency while minimizing manual oversight. Designed for scalability and durability, it’s the ultimate tool for precision-controlled horticultural lighting.

Applications
• Commercial greenhouses and vertical farming systems
• Controlled Environment Agriculture (CEA) facilities
• Multi-zone research and development grow rooms
• Photoperiodic and experimental lighting setups
• Retrofit control upgrade for existing UPLUX fixtures

Scientific Benefits
• Enables precise PPFD and DLI management across multiple zones.
• Mimics natural dawn/dusk transitions to reduce plant stress and improve morphological stability.
• Maintains consistent spectral performance through active current regulation.
• Increases overall energy efficiency by automating dimming and photoperiod schedules.
• Simplifies multi-fixture synchronization for large-scale installations.

• Model: ECO Controller

• Compatibility: 0–10 V and PWM dimmable devices using the documented RJ14 / RJ9 connections

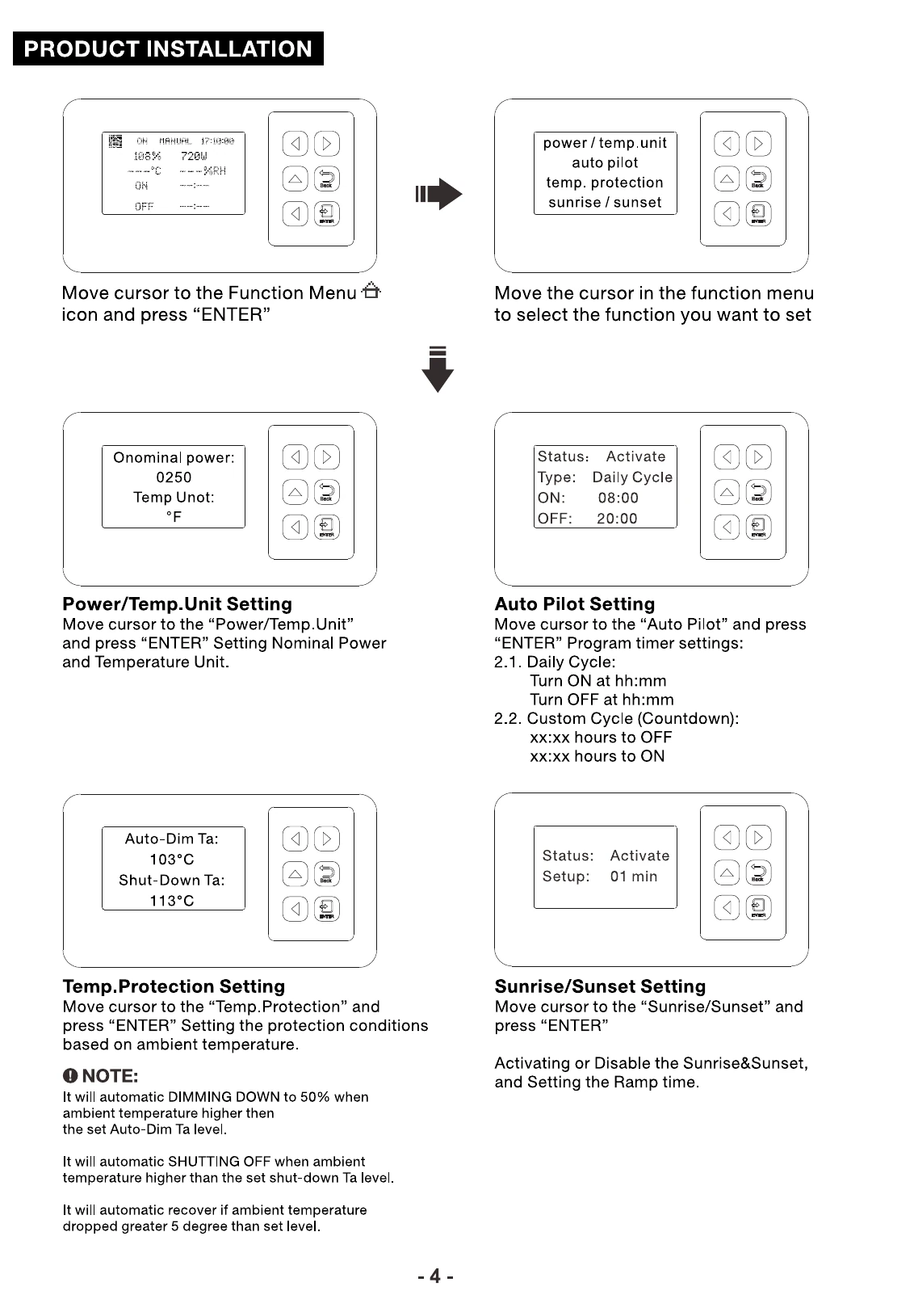

• Control Functions: nominal-power setting, Daily Cycle, Custom Cycle countdown, temperature protection and Sunrise / Sunset ramping

• Display Information: system time, nominal power, measured temperature and humidity, timed start / shutdown and dimming-output status

• Interface: display with physical menu and parameter buttons

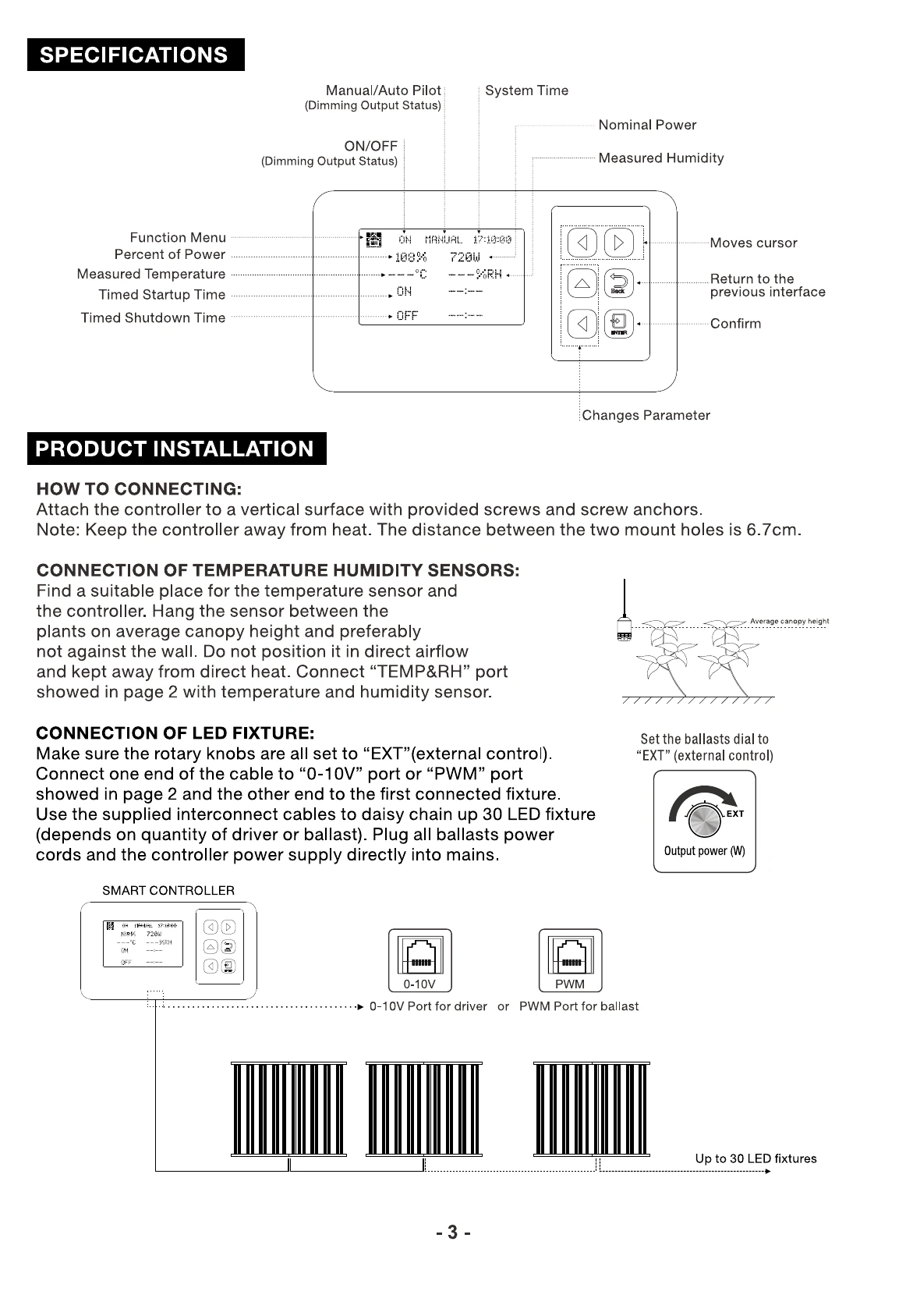

• Connectivity: RJ14 port for 0–10 V output, RJ9 port for PWM output, and temperature / humidity sensor input

• Maximum Linked Quantity: 30 fixtures

• Input Power: 5 V / 2 A

• Housing: black plastic

• Firmware: Upgradable via USB or network connection

• Safety & Protection: Over-current, over-temperature, and short-circuit protection

• Mounting: vertical surface using screws and anchors; mounting-hole distance 6.7 cm

• Dimensions & Weight: 145 × 80 × 28 mm (5.7 × 3.1 × 1.1 in); 310 g

• Warranty: Standard 3-year UPLUX warranty

Scientific Performance Highlights
• Synchronizes large networks of UPLUX fixtures for uniform light intensity across the canopy.
• Real-time diagnostics extend fixture lifespan and improve operational safety.
• Automated dimming algorithms optimize energy use and maintain optimal PPFD levels.
• Accurate photoperiod programming supports advanced cultivation protocols.

Engineering Advantages
• Scalable modular design supports small labs to full commercial operations.
• High-precision electronic architecture ensures stability and repeatability.
• Built-in safeguards protect fixtures from power anomalies or thermal stress.
• Firmware upgrade path allows future expansion and integration with upcoming UPLUX devices.
• Maintenance-free system engineered for 24/7 operation.

Technical diagrams & charts

Source visuals from the matching approved UPLUX datasheet or manual.

Compatible UPLUX lighting systems requiring a dedicated controller.
